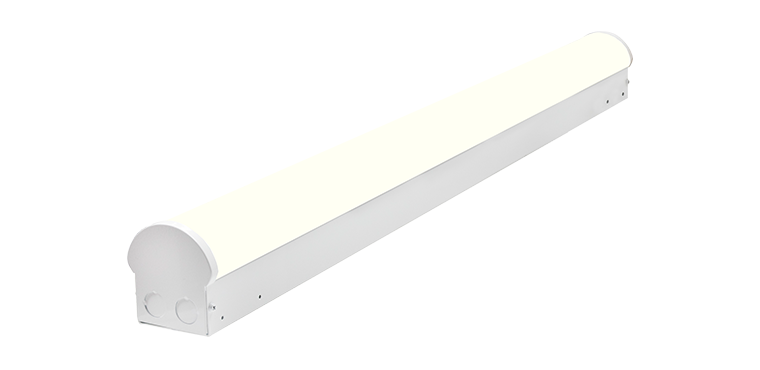

STAD
CCT & Lumen Adjustable LED Strips For General Lighting
The STAD LED strips are powered by Prodigy's Switch, that provide 3-way adjustable CCT and lumen levels at the flick of a switch. The STAD's wattage and color temperature can be adjusted to a total of 9 different combinations that provide unmatched flexibility for on-site customization.
FEATURES
- High durable steel housing with acrylic lens
- Polycarbonate diffuser for glare free efficient light distribution
- Optional factory installed emergency battery and motion sensor
- Easy selectable CCT with an inbuilt DIP switch. ANSI 3500K, 4000K or 5000K CCT
- Calculated lumen maintenance >122,000 hours as per IESNA TM-21-11
- White finish
ELECTRICAL
- 4′ Available in Medium (18W/25W/30W)& High (34W/38W/45W) level models
- 8′ Available in Medium (38W/46W/54W)& High (65W/75W/90W) level models
- Power Factor > 0.90
- Total Harmonic Distortion ≤20%
- 2.5kV surge protection standard.
- 0-10V dimming standard
- Rated ambient operating temperature -20°C (-4°F) to 50°C (122°F)
